You know those moments when you’re trying to charge your phone, but the cable’s nowhere to be found? Seriously, it’s like they vanish into thin air.
And then you think, “Do I even have the right one?” Well, power cables can be a bit of a mystery sometimes.
There’s a bunch of different types out there, each one suited for different devices and needs.
So let’s break it down together! We’ll chat about the various power cables available and how they stack up against each other.
Who knew talking about cables could actually be kind of interesting? Let’s dive in!
Comprehensive Guide to Power Cord Types: Chart and Specifications
Sure thing! Let’s break down power cord types in a way that makes it easy to understand. You know, power cords are those cables that connect your devices to a source of electricity. If you’ve ever wondered why there are so many different types, here’s the scoop.

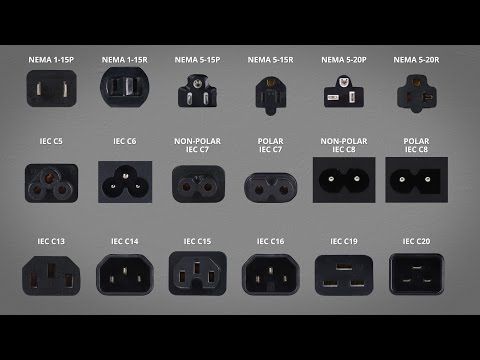

Types of Power Cords
Every device needs a specific type of power cord. Here’s a look at some common types:
- NEMA 1-15: This is your standard two-prong plug. It’s found in most household electronics like lamps and chargers.
- NEMA 5-15: The three-prong plug you often see with computers and other appliances. That third prong is for grounding, which adds safety.
- C13/C14: Often used for computer equipment. The C13 looks like a little box with three holes—super common for desktop PCs.
- C19/C20: These are heavier-duty cords used for servers and larger electronics. They can handle more voltage, which makes them perfect for high-output devices.
- Mickey Mouse Plug (CEE 7/7): This one has two round pins with a grounding pin. It’s popular in Europe but also shows up in some devices sold worldwide.
Where Do You See These Cords?
So, you might be wondering where you’d actually find these cords in real life. Here are some examples:
- If you’ve got an old-fashioned lamp, it probably uses the NEMA 1-15 plug.
- Your laptop charger? Most likely NEMA 5-15, especially if it plugs into a wall outlet.
- If you’re tinkering with server equipment at work or home, those will usually involve C19/C20 cables.
Specifications Matter!
Now let’s talk about why specifications are important. Not all power cords can handle the same amount of voltage or current (that’s basically how much energy they can carry). Using the wrong type can lead to overheating or worse—fires!
- Voltage Rating: Make sure your cord matches the device’s requirements!
- Amperage: This tells you how much current the cord can handle safely without overheating.
You don’t want to mix this stuff up! Like using an extension cord not rated for your high-energy toaster could be dangerous.
The Bottom Line
Understanding different power cords isn’t just techy nonsense—it matters! Knowing what plug works with what device keeps everything running safely and efficiently. So remember to check the specs before plugging things in! And hey, next time you’re looking at all those cables behind your desk or TV stand, you’ll have a better idea of what’s what.
See? Power cords aren’t just boring cables; they’re essential for keeping our gadgets alive!
Comprehensive Guide to Types of Electrical Cables: Downloadable PDF Resource
So, you’re on the hunt for a solid understanding of electrical cables. Makes sense! They are everywhere, and knowing what’s what can really help you when dealing with electronics or even home projects.
Power Cables are the lifeline of your gadgets. They carry electricity from the source to your devices. But not all power cables are created equal. There are several types, each designed for specific uses.
- AC Power Cables: These are the ones you typically plug into your wall outlet. They come in different shapes and sizes depending on what you’re powering up. Think of computer chargers or appliance cords—super common!
- DC Power Cables: If you’ve used a phone charger or an adapter for a laptop, you’ve definitely encountered these guys. They supply direct current to your devices and generally have a barrel connector.
- Coaxial Cables: Mostly found when connecting TVs to cable boxes or antennas. They’re designed to transmit cable television signals effectively without interference.
- Fiber Optic Cables: Now this is where it gets cool! These cables use light instead of electricity to send data, making them super fast and perfect for internet connections.
- Twisted Pair Cables: Commonly seen in networking (like Ethernet). These wires twist together to reduce interference from external sources—great for maintaining signal integrity!
- S/PDIF Cables: Mostly used for audio connections, they can transmit high-quality audio signals between devices without any loss in quality.
Understanding these types means you’ll be better equipped when making decisions about wiring or setting up new devices.
Want some fun context? Picture trying to set up a home office during lockdown—you’ve got cables everywhere! Knowing which is which saves time and headaches! And trust me, nobody enjoys wrestling with tangled cords trying to figure out which one’s meant for power or data transfer.
If you’re looking deeper into each type, there are downloadable PDF resources everywhere that break down these descriptions even further; they often include visual comparisons too.
In short, understanding various electrical cables is key in today’s tech-driven world! It helps make sure everything runs smoothly and avoids unnecessary damage or signal loss with improper connections. So next time you’re dealing with wires, you’ll feel totally in control!
Comprehensive Guide to Types of Power Cords for Electronics: Understanding Compatibility and Safety Standards
Understanding power cords can feel a bit overwhelming, right? You have all these different types, and then there’s compatibility and safety standards to consider. So let’s break it down in a way that makes some sense.
First off, power cords are basically the lifeline for your electronics. They transfer electricity from an outlet to your devices. But not all cords are created equal. Different devices require different types of cords based on their power needs and safety standards.
Now, you might run into a few common types of power cables:
- Type A: This is your classic flat-blade plug used in North America. It’s got two parallel blades and no ground pin. Super standard for low-power devices.
- Type B: This one looks similar but adds a round grounding pin. Essential for things that need a little more safety, like computers and appliances.
- Type C: Often called the Europlug, this is used mainly in Europe. It has two round pins and is compatible with most low-powered devices.
- Type D: Mainly found in India, this one has three large round pins. Perfect for larger electronics that need higher wattage.
- Type G: You see this one in the UK; it has three rectangular pins and also serves high-power needs safely.
Next up is compatibility. The thing is, if you plug the wrong cord into a device, it could lead to some serious issues like overloading or even damaging your electronics. Always check what type of plug your device requires before you go scrambling for a spare cord.
Then there are safety standards. Depending on where you live, there are guidelines about how much voltage and current a power cord can handle safely. Things like UL (Underwriters Laboratories) or CE (Conformité Européenne) marks indicate that the cable has been tested for safety or quality assurance.
Like I remember when my buddy once used an old laptop charger he found lying around because he thought “Hey, it fits!” but it didn’t meet the requirements for his new laptop’s energy needs. It fried his machine! So always double-check those ratings!
Another thing to consider is wire gauge—it’s about how thick the wire inside the cord is. Thicker wires can carry more electricity without overheating or tripping fuses; smaller ones can’t handle as much load without risking damage.
And let’s not forget about length! The longer the cord, the more resistance can build up over distance which could affect performance—so try to use just as much length as you really need.
So yeah, choosing the right power cord isn’t just about picking something that fits; it’s about keeping your electronics safe and running smoothly! Always make sure you’re using compatible cables according to each device’s specifications—you’ll save yourself some headaches down the line!
You know, when it comes to power cables, it may seem like a pretty boring topic at first. I mean, who really thinks about how power gets from the wall to your devices, right? But honestly, there’s a lot more to it than meets the eye. Just think about that time when my phone wouldn’t charge because I was using the wrong cable. Yeah, I was definitely frustrated!
So let’s break down some common types of power cables you might come across. You’ve got your standard AC cables that plug into the wall for computers and other devices. They typically have those three prongs, which means they can carry both live and neutral connections safely. Pretty straightforward.
Then there’s USB cables. These little guys have become our lifelines—charging everything from phones to tablets and even some laptops now! You’ve got USB-A, USB-C, and Micro-USB among others. The cool thing with USB-C is that it’s reversible; you don’t have to fumble around trying to figure out which way is up in low light conditions—or maybe that’s just me!
And let’s not forget about specialized cables like HDMI and DisplayPort ones too. Those are essential for connecting your gear to TVs or monitors if you want top-notch video quality. Seriously, without them? Good luck getting your gaming console up on the big screen.
One cable type people often overlook is the extension cord. I can’t tell you how many times I’ve had one saved my life during family gatherings when suddenly someone needs an extra outlet for their phone or a fancy kitchen gadget. It feels like they should come with a ‘thank you’ card attached!
While we’re chatting about cables, we can’t ignore things like gauge and length either—these play a huge role in determining how well a cable performs based on how much current it’s carrying. Thicker cables usually mean less resistance; so if you’re powering something beefy, go big or go home!
In my own experience, choosing the right power cable has led to fewer headaches—like when I switched out that cheap charger that nearly fried my tablet! So yeah, being mindful of what kind of power cable you use can really make a difference.
Ultimately, while they might seem simple on the surface—power cables are actually pretty crucial components of our daily tech lives! Each type serves its purpose and knowing this can help keep your devices running smoothly (and safely). So next time you’re rummaging through that drawer full of tangled cords? Just remember: each one has its story!
