You know, when it comes to keeping your data safe, you can’t be too careful. Seriously! These days, snoopers are everywhere, trying to peek into your online life.
That’s where IPSec comes in. It sounds fancy, but it’s really just a way to lock up your network connections. Imagine putting your sensitive info inside a safe—yup, that’s what IPSec does.
So let’s chat about how you can set this up. No tech jargon—just the real stuff you need to keep those hackers at bay and feel secure while you’re browsing the web or transferring files. Sound good? Awesome!
Complete Guide to Configuring IPSec for Secure Network Connections on Windows 10
Configuring IPSec for secure network connections on Windows 10 might sound like a mouthful, but it’s pretty straightforward once you break it down. Think of IPSec as the security guard for your data—keeping everything safe while it travels over the internet. So let’s get into it, shall we?
What is IPSec?
IPSec stands for Internet Protocol Security. It’s a framework that encrypts and authenticates data between devices over IP networks, ensuring that nobody can snoop around your info.
Why use IPSec?
Using IPSec is crucial for protecting sensitive information, especially when you’re using public Wi-Fi or connecting to remote servers. It helps keep your communication private and secure from hackers or unwanted eyes.
Getting Started with Configuration
To set up IPSec on Windows 10, you’ll typically use the built-in tools like the **Windows Defender Firewall** and **Local Security Policy**. Here’s how to dive in:
Type `secpol.msc` into the Windows search bar and hit Enter. This opens up the Local Security Policy window.
Within Local Security Policy, navigate to “Network List Manager Policies” to create policies that dictate how your connections will be secured.
Right-click on “Connection Security Rules” and select ‘Create a New Rule’. You can choose between several options depending on whether you want to protect traffic just coming in or also going out.
For most scenarios, you’d want to choose pre-shared key authentication. Just set a strong key that only trusted users know.
Decide if you’re creating rules for all network traffic or just specific types – like HTTP or FTP connections.
This part is crucial:
Make sure to test the configuration after setting it up. Testing helps ensure everything works as expected and protects your data effectively.
Troubleshooting Tips
If something seems off while connecting, here are some things to check:
Sometimes firewall settings can block your newly created rules—double-check they allow traffic according to your configurations.
IPSec uses different encryption methods (like AES). If you’re experiencing slow connections, try different encryption settings as some can be heavier than others.
A Quick Anecdote
I remember when I first tried setting up IPSec at my office. I thought I’d nailed it until half my team couldn’t connect! Turns out I had mixed up my authentication keys. Oops! Double-checking those tiny details makes such a difference.
So there you have it! Configuring IPSec in Windows 10 is less about being a tech wizard and more about following steps carefully. Once set up correctly, you’ll have that warm feeling of knowing your data is protected while surfing online.
Comprehensive Guide to Step-by-Step IPsec VPN Configuration
Configuring an IPsec VPN can feel a bit like piecing together a puzzle, but once you get the hang of it, it’s not too tricky. Let’s break it down into simpler bits.
First off, what is IPsec? It stands for Internet Protocol Security and is used to secure Internet Protocol communications by authenticating and encrypting each IP packet in a communication session. Sounds fancy, huh? Well, it’s really just about keeping your data safe while traveling over the internet.
Now, let’s talk about why you’d want to set up an IPsec VPN. It creates a secure tunnel between two endpoints — basically making sure that any information exchanged remains private. For instance, if you’re working from home and want to access your company’s network securely, this is where IPsec comes in handy.
To get started with the configuration:
1. Choose Your VPN Software: You’ll need software that supports IPsec. Many routers come with built-in support these days, or you can use standalone solutions on your computer.
2. Gather Your Information: To set everything up properly, you’ll need some crucial details:
- The public IP address of your VPN server
- The subnet of the internal network you’re connecting to
- Your authentication keys (like pre-shared keys or certificates)
3. Set Up the IPsec Parameters: Now here comes the whole technical bit! You need to configure:
- Encryption methods: Choose from AES or 3DES — both are solid choices.
- Authentication methods: HMAC-SHA1 is popular; make sure it matches on both ends.
- Diffie-Hellman groups: This helps with key exchange; groups 2 or 14 are often used.
Let me throw in a quick anecdote here: I was once setting up my own VPN connection for remote work—thought it would take me hours! But once I set my parameters and double-checked my info, I was connected in no time.
4. Configure Firewall Settings: Firewalls can block your VPN traffic if they’re not configured correctly. Allow UDP port 500 for IKE (Internet Key Exchange) and UDP port 4500 for NAT-T (Network Address Translation Traversal).
5. Testing Your Connection: Always check if things are working as they should be after setup. Ping the server’s internal address and try accessing resources like shared drives or applications.
Don’t forget about monitoring and maintenance!. Regularly check logs for unusual activity and ensure that software updates are applied as necessary.
That’s basically how you set up an IPsec VPN! While this may sound overwhelming at first glance, each step simplifies into manageable tasks when you’re doing them one at a time. So take a breath and tackle them methodically—that secure connection will be worth it!
Comprehensive Guide to Step-by-Step Cisco IPSec VPN Configuration
Let’s talk about setting up a Cisco IPSec VPN. It’s a bit of a mouthful, but once you get into it, it makes secure network connections way easier to manage. So, let’s break it down into some clear steps without diving into jargon overload.
First off, what’s IPSec? Well, it’s basically a framework used to secure Internet Protocol communications. If you’re looking to connect remote devices securely over the internet, this is your go-to option.
Step 1: Prepare Your Environment
Before jumping in and messing with configurations, make sure you have everything ready. This includes:
- Your Cisco router or firewall configured and access secured.
- A static IP address for the VPN server.
- A client device that will connect to this VPN.
Having those in place will save you headaches later.
Step 2: Set Up the ISAKMP Policy

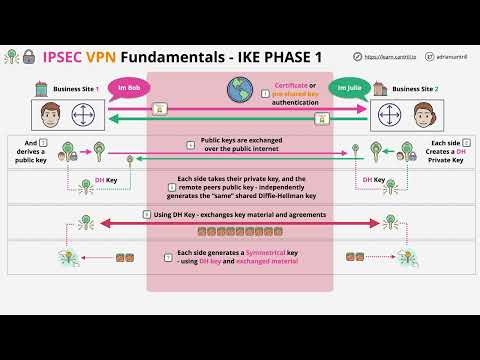

Next up is establishing your Internet Security Association and Key Management Protocol (ISAKMP) policy. This is crucial because it dictates how the initial security association for the IPSec tunnel will be established:
1. Log into your Cisco device.
2. Enter config mode using `configure terminal`.
3. Now create your ISAKMP policy:
«`
crypto isakmp policy 10
encryption aes
hash sha256
authentication pre-share
group 2
«`
Step 3: Define Pre-Shared Keys
You’re going to need an authentication method for clients. A pre-shared key does just that:
«`
crypto isakmp key MySecretKey address [client_ip]
«`
Just replace `[client_ip]` with the actual IP of the client connecting to your VPN.
Step 4: Configure the IPSec Transform Set
Now comes the fun part—defining how data will be processed over this tunnel:
«`
crypto ipsec transform-set MyTransformSet esp-aes esp-sha-hmac
«`
This tells your system what kind of encryption and hashing you’ll use with IPSec.
Step 5: Create a Crypto Map
This step essentially ties everything together by creating a crypto map that links all these components together:
«`
crypto map MyCryptoMap 10 ipsec-isakmp
set peer [VPN_Server_IP]
set transform-set MyTransformSet
match address [access_list_number]
«`
Replace `[VPN_Server_IP]` with your actual server IP and `[access_list_number]` with an appropriate ACL that defines which traffic should be encrypted.
Step 6: Apply the Crypto Map
You’ve done most of the heavy lifting! Now, apply this crypto map to an interface:
«`
interface GigabitEthernet0/0
crypto map MyCryptoMap
«`
Make sure you replace `GigabitEthernet0/0` with whatever interface you’re using for internet connections.
Step 7: Verify Configuration
To check if everything’s working as it should, run some commands like:
«`
show crypto isakmp sa
show crypto ipsec sa
«`
These commands give you insight into whether or not your tunnels are established and running smoothly.
Setting up a Cisco IPSec VPN might seem daunting at first glance, but breaking it down makes things manageable! Each step builds on the last one, ensuring you’re crafting strong security for data sent over potentially risky networks. Plus, nothing feels better than knowing you’ve set up secure connections by yourself—am I right? Enjoy exploring those secure tunnels!
Setting up IPSec for secure network connections might sound a bit daunting at first. I mean, the whole idea of encrypting your data as it travels across the internet is super important, but the technical bits can feel overwhelming. I remember my first real experience with this—it was like trying to learn a new language! I had just started working on a project that required some extra layers of security, and I was lost in all the acronyms and configurations.
So, IPSec stands for Internet Protocol Security. Basically, it’s a protocol suite that helps ensure secure communications over IP networks by encrypting the data packets sent between two endpoints. It’s like putting your messages in a secure envelope before mailing them out! You know? This way, even if someone intercepts them, they can’t read anything without the right key.
When you start configuring IPSec, you’ll encounter two main modes: transport and tunnel. The transport mode only encrypts the payload of the IP packets—not the header—while tunnel mode encrypts both. For most uses involving virtual private networks (VPN), tunnel mode is often the go-to choice since it keeps everything nice and safe from prying eyes.
One thing that freaked me out back then was all those settings and parameters—like transforming numbers into magic spells! You’ve got to pick algorithms for hashing and encryption. Things like AES (Advanced Encryption Standard) or SHA (Secure Hash Algorithm) pop up frequently in these discussions. Honestly, if you’re not familiar with cryptography, it can feel like reading sci-fi tech jargon.
But here’s where it gets real: after you dig through all that techy stuff—like setting up security associations—you quickly realize how much safer your connection becomes. It feels comforting knowing that when I’m sending sensitive info over public Wi-Fi or connecting to remote gateways, it’s wrapped up tight.
So yeah, if you’re thinking about configuring IPSec for your own network connections, just take it step by step. It may seem tricky at first glance, but remember that learning curves are part of any journey in tech! And once you get through it? Well, you’ll feel pretty awesome knowing you’ve bolstered your security game significantly.
