So, you’re diving into the world of networking, huh? That’s awesome! But let’s be real for a sec—networking can sometimes feel like a giant puzzle.
One piece of that puzzle is configuring static NAT. Sounds technical, right? But it’s actually super important for making sure your devices talk to each other reliably.
Imagine this: you’ve got a server at home that you want to access from anywhere. Static NAT is like giving that server a permanent address, so it’s always easy to find.
Trust me, once you get the hang of it, you’ll be all set to tackle those networking challenges head-on!

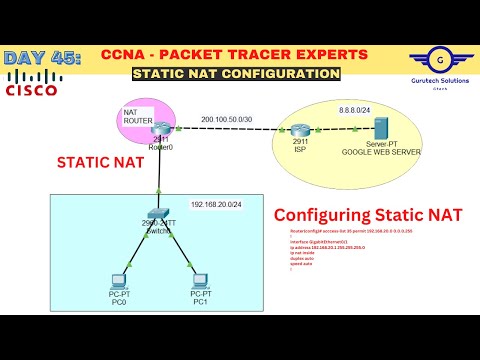

Comprehensive Guide to Configuring Static NAT in Packet Tracer
Alright, let’s get into configuring Static NAT in Packet Tracer! It can sound a bit tricky at first, but once you get the hang of it, it’s actually pretty straightforward. Just imagine yourself setting up your home network but with a little added flair for your lab experiments.
What is Static NAT? Basically, it stands for «Network Address Translation.» In simple terms, it allows you to map a private IP address to a public IP address. So when devices inside your network want to reach out to the internet, they do so using their private address, but the outside world only sees the public address. This is super handy for hosting servers like web or email servers.
Why use Static NAT? The main reason is reliability. With static mapping, every time a device needs to communicate over the internet, it uses the same public IP. This consistency is vital for services that need persistent connections.
Now onto how you actually do this in Packet Tracer:
Start by creating your network. Open Packet Tracer and set up your devices—routers, switches, and PCs—just like you’d build a little city of wires and signals. Make sure you’ve assigned private IPs to your internal devices.
- Access the Router Configuration: Click on your router in Packet Tracer and go to the CLI tab.
- Enter Global Configuration Mode: Type “enable” to enter privileged EXEC mode and then “configure terminal” to go into global configuration mode.
- Create Access Lists: You need one that identifies which internal IPs can be translated. For example:
access-list 1 permit 192.168.1.10
This allows translation for the device with that specific private IP.
- Configure Static NAT: Here comes the fun part! You want to associate that private address with its public counterpart:
ip nat inside source list 1 interface Serial0/0/0 overload
Replace Serial0/0/0 with whatever interface connects to the outside world.
- Dynamically Configuring Interfaces: Specify which interfaces are inside (your LAN) and which are outside (the internet). For instance:
interface GigabitEthernet0/1 ip nat inside
And then for the outside:
interface Serial0/0/0 ip nat outside
- Your Final Checks: Once everything’s set up, you can test connectivity by pinging some external addresses from an internal device or even accessing a web page.
So there you have it! When you’re done with those steps in Packet Tracer, you’ve just configured Static NAT!
Remember that if anything goes wrong during testing—like not being able to reach an external site—it might be worth checking your configurations again or making sure there aren’t any firewall issues blocking traffic.
Also keep in mind this isn’t just about keeping things neat; it’s about how data moves around our techy world safely and predictably. Setting up Static NAT gives you control over how devices talk across networks without mixed signals confusing everything!
If I could share one last thought—a reminder really—it’s great practice for real-world applications where reliable networking matters! Keep experimenting with different setups in Packet Tracer; you’ll find all sorts of nifty configurations along the way as you get more comfortable with things. Happy networking!
Comprehensive Guide to Static NAT Configuration Commands for Network Optimization
Alright, let’s get into the nitty-gritty of **Static NAT Configuration**. If you’ve ever tried to connect multiple devices on a local network to the internet with just one public IP address, you might’ve wanted to use **Network Address Translation (NAT)**. So, yeah, **Static NAT** is a way to map a private IP address to a public one. It’s like giving each of your devices a personal phone number so they can receive calls (in this case, data packets) from the outside world.
Why Use Static NAT? Well, imagine you’re running a small business and need to host a server—maybe for emails or your website. With Static NAT, folks outside can always reach your server at the same public IP. It’s reliable and helps avoid confusion over dynamic IPs.
Now, on to the commands. These usually depend on what kind of hardware you’re using; Cisco routers are pretty common in this space. Here’s how it generally goes.
- Access the Router: You’ll first need to log into your router via console or SSH. This is where all the fun starts!
- Enter Configuration Mode: You type in
configure terminal. This tells the router you’re ready for some serious business. - Create Static NAT Entry: The command structure looks like this:
ip nat inside source static [local-ip] [global-ip]. You replace [local-ip] with your device’s private address and [global-ip] with the public address it should use.
Example:
ip nat inside source static 192.168.1.10 203.0.113.5
interface [inside-interface]
ip nat inside
exit
interface [outside-interface]
ip nat outside
writes memory. Otherwise, all that work could go poof after a reboot!It’s worth mentioning that Static NAT can seem like overkill if you don’t have servers or services that need constant access from an external network because it’s not as flexible as dynamic NAT. Dynamic might be better if you’re just browsing web pages when sitting at home.
Troubleshooting Tips: If things aren’t going as planned—you can’t reach your device from outside—here are some quick checks:
- Pinging: Make sure you can ping both local and external addresses.
- NAT Table Check: Use
show ip nat translations; this shows if everything is being mapped correctly. - Acl Issues: Check Access Control Lists; they might be blocking traffic unintentionally.
So there you have it—a straightforward look at configuring Static NAT! It’s essential for keeping things running smoothly when reliable connections are crucial for your network setup. Just remember those commands in order and save often!
Step-by-Step Guide to Configuring Static NAT on Cisco Routers
Configuring Static NAT on Cisco routers can seem daunting at first, but once you break it down, it’s pretty straightforward. When you set up a Static NAT, you’re basically telling your router how to translate one IP address into another. This is crucial for reliable network addressing, especially if you’re running services that need consistent access from the outside world.
First up, let’s talk about some basics. NAT, or Network Address Translation, allows multiple devices on a local network to share a single public IP address. In your case, with **Static NAT**, this is a one-to-one mapping between an internal private IP and an external public IP.
Here’s how you can configure Static NAT on your Cisco router:
1. **Access Your Router**: Connect to your Cisco router using a console cable or SSH. Enter privileged EXEC mode by typing `enable`.
2. **Enter Configuration Mode**: Type `configure terminal` (or just `conf t`) to get into the configuration mode where all the magic happens.
3. **Identify Your Internal and External Interfaces**:
– You need to know which interface will receive incoming traffic (often the public side) and which one connects to your local network.
– Use the command `show ip interface brief` to see a list of your interfaces and their status.
4. **Configure the Internal Interface**: You’ll define which internal private IP address you want to map through Static NAT.
– For example:
«`
interface GigabitEthernet0/1
ip address 192.168.1.10 255.255.255.0
«`
5. **Define the External Interface**: This is where you specify the public IP that will be used.
– Like this:
«`
interface GigabitEthernet0/0
ip address 203.0.113.5 255.255.255.252
«`
6. **Create the Static NAT Mapping**: Here’s where you define what goes where.
– The command looks something like this:
«`
ip nat inside source static 192.168.1.10 203.0.113.5
«`
– This tells your router that any traffic coming into 203.0.113.5 should be sent over to 192.168.l.l10.
7 . **Verify Your Configuration**: It’s always good practice to check your work! Use:
«`
show ip nat translations
«`
– This will show you all current translations and ensure everything’s running smoothly.
8 . **Save Your Configuration**: If everything looks good, don’t forget to save it so it’s not lost after a reboot!
– Just type `write memory` or `copy running-config startup-config`.
Some things might trip you up along the way—like trying to access your service from outside without having proper firewall rules configured or forgetting about access lists.
Just remember that configuring Static NAT gives reliable addressing for services like web servers or VPNs because they need consistent visibility from beyond your local network.
So there you go! That wasn’t too bad, right? Once set up correctly, static mappings simplify connectivity and make sure you’re not dealing with random IP changes disrupting service access down the line!
Configuring Static NAT might sound like something only tech wizards do, but it’s actually pretty straightforward once you catch the drift. With all the devices we use these days—phones, tablets, smart TVs—it can feel like a juggling act to keep everything connected without chaos breaking loose. So let’s talk about how Static NAT helps keep your network steady.
Imagine you’re at home with a bunch of friends and everyone’s trying to get on the Wi-Fi. You want your buddy Sam to have a reliable connection for that online game while Jen is just browsing Instagram. When Static NAT is set up right, it assigns a specific IP address to each device, making sure they’ve always got their own space in the digital world. No more wondering if someone else is hogging bandwidth or if they’ll get kicked off when someone else logs in.
Setting this up usually involves messing around with some router settings. It’s not rocket science, but it can feel a bit intimidating if you’re not familiar with it. I remember the first time I tried configuring my own home network; I felt like an explorer mapping uncharted territory! But after a few trial and error moments—like inadvertently disconnecting my fridge from Wi-Fi (seriously!)—I got the hang of it.
One of the best parts about using Static NAT is that it enhances security too. Since each device has its unique address always, you can set permissions or restrictions more easily. It’s crucial for devices that need consistent access from outside networks, like servers hosting websites or applications. That means your online gaming server won’t mysteriously change addresses every week!
In short, while configuring Static NAT may seem like one of those tech jargon-filled tasks that only IT pros love to handle, it’s actually super beneficial for anyone looking for reliable network addressing at home or in small offices. You’ll find fewer headaches down the line and better performance overall! So next time you’re wrestling with your home network setup, remember: a little configuration goes a long way toward keeping things running smoothly—and that’s totally worth it!
