So, you’re thinking about upgrading your PC, huh? That’s awesome! Seriously, there’s nothing like the excitement of building or tweaking your setup.
You know, the motherboard is kinda like the brain of your computer. If you get it right, everything just clicks into place. I mean, who doesn’t want their rig to run like a champ without hiccups?
The H97M D3H is a solid choice for keeping things smooth and reliable. It’s got the features you need without being crazy complicated. We all want a good bang for our buck, right?
Let’s break down how to install it, so you can get back to gaming or whatever it is you love doing on your PC!
Comprehensive Guide to H97M D3H Specifications and Features

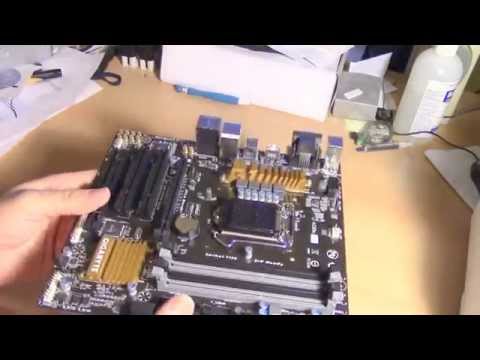

The H97M D3H motherboard, made by Gigabyte, is designed to offer solid performance for a variety of computing needs. If you’re looking to build or upgrade your PC, this board has some useful features to consider. It’s like the backbone of your system, holding everything together and ensuring that all the parts work smoothly.
Form Factor
This motherboard is an Micro ATX unit. That means it’s a bit smaller than the standard ATX boards but still packs a punch. Its size makes it easier to fit in various cases without sacrificing too much functionality.
Processor Support
The H97M D3H supports Intel’s 4th and 5th generation processors thanks to its LGA 1150 socket. This range includes popular CPUs like the Intel Core i7, which can give you really good performance for gaming or multitasking, and even older models like the i5 or i3. So pick one based on your needs!
Memory Slots
You get four DIMM slots with support for up to 32GB of DDR3 RAM. The maximum speed supported is 1600MHz. If you’re into heavy gaming or running programs that need a lot of memory, loading up all those slots can be beneficial.
Storage Options
For storage, this motherboard provides six SATA III ports and one M.2 slot. That’s great if you want plenty of room for SSDs or hard drives! It’s perfect for managing your files smoothly without worrying about running out of space.
I/O Ports and Connectivity
On the back panel, you’ll find a good number of ports including USB 3.0 and USB 2.0 options. There’s also HDMI output if you’re looking at running dual monitors or just want an easy way to connect to your TV—pretty neat right?
Audio Features
The H97M D3H comes with a built-in audio codec that supports high-definition audio with multi-channel output. This means you’ll have decent sound quality whether you’re gaming or streaming movies.
So yeah, if you’re building a reliable PC and considering the H97M D3H motherboard, it’s packed with features that balance performance well with affordability! A solid choice with lots of capability for most users without being over-the-top complicated!
Guide to Installing H97M D3H Motherboard for Optimal Windows PC Performance
Installing a motherboard can seem daunting, but with a little patience and some straightforward steps, you’ll have your H97M D3H set up for optimal performance in no time. It’s all about getting the pieces right. Let’s break it down.
First off, make sure you have everything you need. You’re gonna want:
- The H97M D3H motherboard
- A compatible CPU (Intel, of course)
- RAM sticks (DDR3 in this case)
- A good power supply (with enough wattage)
- Your trusty screwdriver
Before diving into the installation, take a moment to ground yourself. Seriously, there’s nothing worse than static electricity ruining your shiny new parts. Touch a metal surface or wear an anti-static wrist strap if you have one handy.
Now, when you’re ready to get started with the actual installation:
First things first, remove your old motherboard. Just unscrew everything and gently pull it out of the case. Don’t forget to disconnect all the cables and components connected to it!
Place the new H97M D3H onto its box or an anti-static mat while you prepare it for installation. This is where you’re going to install the CPU and RAM before placing it in the case.
For installing the CPU:
1. Find that little arrow on both your CPU and socket; these need to match up.
2. Gently lift the lever on your CPU socket.
3. Place your CPU into its spot without touching those pins on the bottom—super delicate stuff!
4. Lower that lever back down to secure it.
Now onto RAM:
1. Open the clips on relevant RAM slots.
2. Line up the notches on your RAM sticks with those on the slots.
3. Press down firmly until they click into place—like tucking a blanket into bed!
With these components installed outside of your case, let’s move back inside:
Carefully place the motherboard inside of your PC case, making sure all screws line up with stand-offs already in place in your case. Secure it down by tightening each screw gently.
Now here comes connecting everything:
– **Power Supply**: Connect that 24-pin power connector from your PSU to your motherboard along with any additional power connector for the CPU.
– **Data Cables**: If you’re installing HDDs or SSDs, connect them via SATA cables.
– **Front Panel Connections**: Don’t forget to connect USB ports and other front panel connectors—you don’t want that blinking LED light drivingyou nuts later!
Once everything is wired up and looking solid (no loose bits!), it’s time to fire her up! Turn on that PC and hope for smooth sailing.
The last step? Install Windows if necessary! Make sure you’ve got a bootable USB or DVD ready because you’ll want that fresh install running like a well-oiled machine.
But wait—if things don’t work right away? Don’t panic! Check connections; sometimes they come loose during all this shuffling around.
Getting through this might feel overwhelming at first but take it one step at a time; soon enough you’ll be enjoying smooth performance from that new setup!
Step-by-Step Guide to Installing H97M D3H Motherboard for Enhanced PC Performance and USB Functionality
Alright, so you’re gearing up to install the H97M D3H motherboard, huh? That’s cool! A solid choice for improved performance and USB functionality. Let’s walk through this process step by step without getting too technical or overwhelmed, alright?
First things first, make sure you’ve got all your tools ready. You’ll need a Phillips head screwdriver and some patience. Seriously, it’s easy to get frustrated if something doesn’t fit right the first time. A bit of common sense helps too!
1. Gather Your Components
Before you start tearing things apart, check that you have everything:
- The H97M D3H motherboard
- Your CPU (and cooler)
- RAM sticks
- Power supply unit (PSU)
- Your computer case
Make sure everything is compatible! It’s a bummer when you realize something doesn’t fit.
2. Prepare The Case
Open your computer case by removing the side panel—this usually involves unscrewing a few screws at the back. Then you’ll want to check for standoffs inside where the motherboard will sit. If they aren’t there already, put them in place according to your motherboard’s layout.
3. Install the CPU and Cooler
Next up, grab your CPU and line up those triangular notches with the socket on your motherboard. Gently place it in; don’t force it! Once it’s seated, put on your cooler following its instructions—there’s usually a clip or screws involved.
4. Insert RAM Sticks
For optimal performance, install your RAM sticks in the appropriate slots (check your manual for which are best). They click into place; just apply even pressure until they lock in.
5. Prep The Motherboard For Installation
Before placing your motherboard into the case, connect any necessary cables like power connectors and front panel leads where needed. It can feel cramped later on if you wait until it’s installed.
6. Mount The Motherboard In The Case
Carefully lower your motherboard into position above those standoffs we talked about earlier and align it so every hole matches up with a standoff below. Secure each corner with screws—don’t over-tighten; you don’t want to crack anything!
7. Connect Power Supply Cables
Now it’s time to plug in those power cables from your PSU that go into the motherboard—you’ll find an ATX 24-pin connector and usually an additional 4 or 8-pin connector for extra power to the CPU.
8. Connect Storage Devices and Additional Components
If you’re using SSDs or HDDs, plug them into their respective ports on the motherboard using data cables—it’s easy stuff! And while you’re at it, connect any other components like graphics cards if you’ve got one.
9. Close It Up!
After everything is connected and looking good inside there, put that side panel back on! Make sure all screws are secured properly; loose panels drive me nuts!
10: Boot Up And Configure BIOS Settings
Power on your PC! If everything is working well—fingers crossed—you should see some BIOS setup screens pop up after booting up. Here, make any necessary adjustments like setting boot priorities.
Don’t be surprised if things don’t work perfectly right away; sometimes there can be a glitch or two during installation—or maybe just me forgetting to reconnect something basic!
In short: Installing an H97M D3H motherboard isn’t rocket science but does require focus and care not to mess anything up along the way.Basically, follow these steps methodically and take breaks if needed—that way you’ll avoid unnecessary stress.
Good luck with your installation! Enjoy that boost in performance once you’re done—you’ll definitely notice a difference!
So, I remember the first time I decided to build my own PC. I was super excited but also a little freaked out. It’s like, you’re putting together a bunch of components and hoping they all play nice. Anyway, one of the pieces that really stood out to me was the motherboard—it’s like the heart of your computer, right? And let me tell you, understanding that whole thing made me realize how crucial it is for reliable performance.
Now, if we look at the H97M D3H motherboard specifically, it has some cool features that can really make your life easier. First off, you get solid compatibility with different CPUs and RAM types. That means if you’re planning on upgrading down the line or trying out new components, this board won’t leave you high and dry.
But here’s where things got real for me: when I finally had everything set up and hit that power button for the first time—it was exhilarating! The screen lit up without any hiccups, and everything ran smooth as butter. It felt like pure magic after all those hours of research and tinkering. Seriously, nothing can beat the satisfaction of knowing you’ve built something reliable from scratch.
And let’s not forget about connectivity. With multiple USB ports and slots for SSDs or HDDs, it’s got you covered whether you’re gaming or just browsing around. You know what I mean? It doesn’t just sit there looking pretty; it’s practical too.
But what really struck me is how often we take these things for granted when our PCs are running well. We only appreciate a good motherboard when it starts giving us problems—like crashes during an important game or missing files because your setup just can’t handle it anymore.
Installing an H97M D3H can definitely set you up for solid performance now and into the future—if you’re careful with your choices along the way, that is! Just make sure to read through manuals (trust me on this one), follow guides if you’re unsure about connections or BIOS settings; it makes a world of difference.
In short—take that step if you’re looking to tweak or build a PC that’ll last! It might seem daunting at first, but once everything clicks into place? Oh man, it’s totally worth it!
