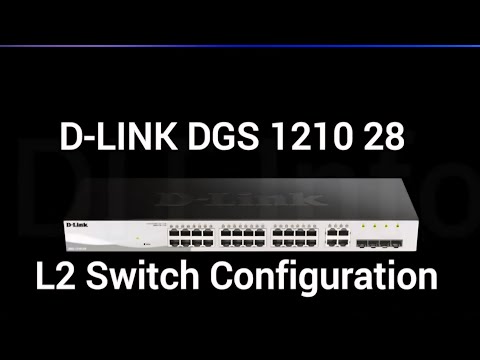

Setting Up VLANs on D-Link Switches for Enhanced Control

Hey there! You ever had issues with network control? Like, one minute everything’s smooth, and the next, emails are dragging or even worse—your streaming just won’t buffer? Yeah, it can get frustrating.

So, if you’ve got a D-Link switch lying around, you might wanna think about setting up VLANs. Seriously. It’s like adding a turbo booster to your network management.

Imagine having separate networks for your team’s work stuff and personal devices. That just brings peace of mind, right? Plus, it helps keep things organized and running smoothly.

Let’s chat about how to get this done! You’re gonna love the control you’ll have over your network.

Comprehensive Guide to D-Link Switch VLAN Configuration Commands

Setting up VLANs on D-Link switches is a practical way to enhance network control and segmentation. If you’re looking to dive into the world of Virtual Local Area Networks (VLANs), you’ve come to the right place. Let’s break this down step by step.

First off, **what is a VLAN?** To put it simply, it’s a way to group devices on a network, even if they’re not on the same physical switch or location. This means you can keep your network organized and secure, allowing for better traffic management.

So, **why use VLANs on D-Link switches?** Here are some key reasons:

Now that you’re aware of the benefits, let’s talk about **how to configure VLANs** on your D-Link switch using command line interface (CLI) commands. This process can seem tricky at first, but stick with me—it’s not too bad!

### Accessing Your Switch

To kick things off, you need access to your D-Link switch via CLI:

1. Connect your computer to the switch using SSH or console cable.
2. Log in with your credentials (default username is often `admin`, password might be blank or `admin`).

Once you’re in, you can start entering commands!

### Basic VLAN Commands

Here are some commands you’ll frequently use:

– **Create a VLAN**: To create a new VLAN and name it, use:
create vlan [vlan_id] name [vlan_name]

For instance:
create vlan 10 name Sales

– **Get current VLAN configuration**: If you want to see existing configurations:
show vlan

– **Add ports to a VLAN**: Once the VLAN is set up, add ports like this:
interface ethernet [port-number]

Then assign it:
switchport mode access
switchport access vlan [vlan_id]

For example:
interface ethernet 1/0/1
switchport mode access
switchport access vlan 10

– **Remove ports from a VLAN**: If necessary, you can remove ports as well. Just go back into the interface configuration and run:
no switchport access vlan

### Configuring Trunk Ports

You may also want trunk ports that allow multiple VLANs. Here’s how:

1. Go to interface config mode for the trunk port.
interface ethernet [trunk-port-number]
2. Set it as trunk:
switchport mode trunk
3. Specify allowed VLANs:
switchport trunk allowed vlan add [vlan_id]

This is crucial for keeping multiple segments connected without overloading any single port.

### Saving Your Configuration

Don’t forget! After making all these changes, make sure you save them so they stick after rebooting the switch. You can do this with:

save

That’ll ensure that all your hard work doesn’t vanish into thin air when someone accidentally turns off power.

### Wrapping Up

So there you have it! Setting up and configuring VLANs on D-Link switches might sound complex at first but once you grasp those commands, it’ll become second nature. Remember that practicing these commands in a safe environment will help solidify your skills.

If anything goes wrong while configuring your switches—like forgetting which port belongs to what—you might need clear labels or maybe even diagrams of your setup! Taking good notes can save headaches later on—believe me!

Happy configuring!

Comprehensive Guide to D-Link VLAN Configuration for Enhanced Network Performance

So, you’re looking to set up VLANs (Virtual Local Area Networks) on your D-Link switches, huh? That’s a solid idea if you want to boost your network performance and control. Let’s break this down so it’s easy to follow.

What Are VLANs?
VLANs allow you to segment a network into different parts. Basically, it helps in organizing devices based on function or purpose rather than just location. So, like, if you have a bunch of printers that need to communicate with each other but not with the entire office network, creating a VLAN for those printers can help.

Why Use D-Link Switches?
D-Link switches are user-friendly and have built-in features that simplify VLAN configuration. This means you can manage your network more efficiently without diving too deep into complex setups.

Steps to Set Up VLANs
First things first, access your switch’s web interface by entering its IP address in a web browser. You know the default is usually something like 192.168.0.1 or 192.168.1.1? If you’re not sure, check the manual!

Once you’re in:

Navigating the Interface

– Look for the VLAN section in the menu.
– Sometimes it’s under Advanced Settings, so keep an eye out.

Creating VLANs

– Click on Create VLAN. Here you’ll give each VLAN a unique ID (let’s say 10 for Sales and 20 for HR).
– After naming them (like “Sales” or “HR”), hit Add. It should save automatically.

Assigning Ports

– Next step: assign ports to these VLANs.
– You’ll see options for ports (like Port 1, Port 2…). Select which go where!
– For example, if Ports 1-5 are for Sales and Ports 6-10 are for HR, just check those boxes.

Saving Your Configuration

– Don’t forget this part! After setting everything up, look for Save Settings.
It’s super important so your changes stick after a reboot.

Benefits of Using VLANs
So here’s where it gets good! By using VLANs:

• You reduce broadcast traffic — this makes everything run smoother.
• You enhance security because devices in different VLANs can’t talk unless you set up routing rules.
• You manage bandwidth better by controlling which devices share resources.
• If there’s an issue—like a device acting funky—you can isolate it without taking down the whole network.

Troubleshooting Common Issues
Now, if things aren’t going as planned:

• Your device can’t connect? Check if it’s plugged into the right port assigned to its VLAN.
• No Internet access? Make sure your router is configured correctly with any necessary routing protocols for inter-VLAN communication.
• Pinging fails between devices? Could be that firewall settings are blocking communications!

When I first tried setting up my own home network with VLANs, I had all kinds of trouble getting my Raspberry Pi to chat with my printer on another VLAN. It turns out I needed to tweak some firewall settings—once I did that, everything clicked!

So yeah, configuring D-Link switches with VLANs gives you tons of control over your network and can really enhance performance too! Just remember: take it step by step and don’t rush through any configurations; double-check them before saving!

D-Link Switch Configuration Commands PDF: Comprehensive Guide for Network Setup

When you’re diving into the world of networking, D-Link switches can be a powerful tool. If you’re thinking about setting up VLANs for better control over your network, it’s important to get familiar with the configuration commands you’ll need.

Understanding VLANs is key. VLAN stands for Virtual Local Area Network. This allows you to partition your network so that certain devices can communicate with each other while being isolated from others. Imagine it like having separate rooms in a house where each room has its own purpose.

Getting Started with D-Link Switch Configuration

Before jumping into commands, make sure you have access to your switch’s console through either a direct connection using a serial cable or over the network using SSH or Telnet. You might need specific software to connect, like PuTTY or Tera Term, which are easy to use for terminal access.

Once you’re connected, here are some crucial steps and commands:

Troubleshooting Tips

Sometimes setting up VLANs doesn’t go smoothly—maybe devices aren’t communicating as they should. Here’s what you can check:

Finally, always refer back to D-Link’s documentation if you’re stuck. They often provide comprehensive guides and updates on their websites—so bookmark that resource!

Setting up your network might feel overwhelming at first but once you get into the rhythm of things and understand how VLANS work within D-Link switches? It’ll start feeling like second nature!

Setting up VLANs on D-Link switches can feel a bit intimidating at first, but once you get the hang of it, it’s like finding that hidden section in your favorite store—you wonder how you ever lived without it. So, let’s break this down.

VLANs, or Virtual Local Area Networks, are super handy for organizing your network traffic. Think of them like different rooms in a house. You wouldn’t want the living room crowded with people while you’re cooking in the kitchen, right? Well, networks can get just as messy. VLANs help keep things tidy by segmenting traffic based on function or department, so devices only talk to each other when they need to.

Now, if you’ve got a D-Link switch lying around and are ready to dive in, here’s where the fun starts. The interface might seem a bit overwhelming at first glance—so many buttons and options! But honestly? Take it step by step. You’re looking to create separate networks for different groups or purposes. For instance, you could have one VLAN for your finance team and another for marketing.

I remember the first time I tried setting this up. I was convinced I’d mess everything up—like accidentally putting salt instead of sugar in a cake—but it turned out fine! You just follow some basic steps: access the switch’s web interface through its IP address (that part is pretty easy), and then start creating VLAN IDs.

When configuring these VLANs, you’ll assign ports on your switch to specific VLANs. That way, devices connected to those ports will only communicate within their assigned group unless you’ve set up routing protocols for inter-VLAN communication later on. It’s kind of like giving each group their own walkie-talkies that don’t interfere with others unless needed.

Remember to save your changes after each tweak! It’s easy to forget that little detail when you’re feeling overwhelmed by all those settings. And hey, don’t hesitate to experiment; that’s how you learn what works best for your setup.

The whole process may take some patience and trial-and-error moments—it really isn’t as scary as it seems once you’re in there tinkering around. Plus, once you see how snugly everything fits into its allocated VLAN space? It’s satisfying! You gain so much more control over network performance and security.

So if you’re leaning towards better organization and management of your network setup with D-Link switches through VLANs , jump right in! Just take a deep breath and go at your own pace; soon enough you’ll be well-versed at segmenting traffic like a pro!
