You know when you’re setting up a network and it feels like you’re juggling a bunch of balls? Well, DHCP is one of those tricky ones. It’s like the magic trick behind assigning IP addresses to devices automatically. Seriously, it saves you so much hassle.
Now, what if I told you there’s a way to play around with this stuff without breaking anything? That’s where Packet Tracer comes in. Imagine having a sandbox where you can simulate all kinds of DHCP scenarios. No stress, just learning!
We’ll go through how to get set up and mess around with configurations, all while keeping it chill. By the end, you’ll feel pretty confident about tackling DHCP in real life. Let’s jump in!
Mastering DHCP Configuration Simulations with Cisco Packet Tracer
Alright, let’s chat about mastering DHCP configuration simulations using Cisco Packet Tracer. Now, if you’re not familiar with DHCP, it stands for Dynamic Host Configuration Protocol. Basically, it’s the magic behind how devices on a network automatically get their IP addresses and other relevant settings.
First off, when you’re setting up a DHCP server in Packet Tracer, you’ll want to ensure you have a solid grasp of the basics. The best part? You can visually see how everything connects and works together. It’s like playing with virtual Legos for networking!
Setting Up Your Network

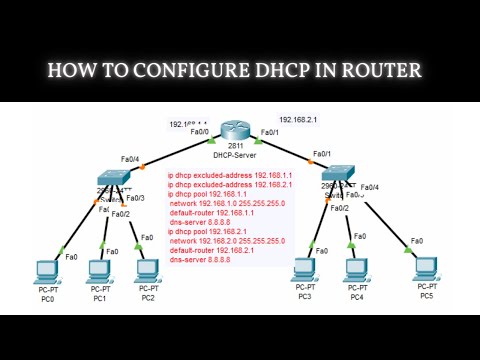

Start by dragging and dropping your devices onto the workspace. Typically, you’ll need a router that can function as a DHCP server. You might also want some PCs or laptops that will connect to it.
Configuring the Router
1. Click on the router and go to the CLI (Command Line Interface).
2. Enter privileged EXEC mode by typing `enable`.
3. Now, let’s enter global configuration mode with `configure terminal`.
Once you’re in there, you’ll configure your DHCP settings:
– Use the command ip dhcp excluded-address followed by the range of IPs you want to reserve for static assignments.
– For instance:
ip dhcp excluded-address 192.168.1.1 192.168.1.10
This tells your router not to hand out those addresses.
Then, create your actual DHCP pool:
– Use ip dhcp pool YOUR_POOL_NAME.
– Set up the network range with network 192.168.1.0 255.255.255.0.
– Don’t forget to specify the default gateway and DNS server using default-router 192.168.1.1 and dns-server 8.8.8.8, for example.
Verifying Settings
Now comes a fun part! To check if everything is working properly:
– On each PC or laptop connected to your network, go into their desktop settings.
– In Packet Tracer, select “IP Configuration” and then choose “DHCP”. The device will request an IP address from your router.
If everything is configured correctly, you should see those devices getting their IPs assigned automatically!
Troubleshooting Common Issues
Sometimes things don’t go as smoothly as you’d like—trust me; I’ve been there! Here are common hiccups you might run into:
Look at whether your router is configured correctly or if there’s an issue with physical connections in Packet Tracer.
Check your excluded address range; make sure it isn’t overlapping with what you’re trying to assign.
The beauty of using Cisco Packet Tracer is that you can experiment without worrying about breaking anything in real life—so feel free to try different configurations!
So there ya go! With some practice in Packet Tracer, you’ll feel like a DHCP wizard before long! It may seem complicated at first glance but play around with it; soon enough you’ll be configuring networks like it’s second nature!
Step-by-Step Guide to Configuring DHCP Server in Cisco Packet Tracer (PDF)
Alright, so you’re looking to configure a DHCP server in Cisco Packet Tracer. That can seem a bit overwhelming at first, but it’s actually pretty straightforward once you break it down. Let’s get into the nitty-gritty of it!
First off, what is DHCP anyway? Well, basically it’s the Dynamic Host Configuration Protocol. You can think of it as the friendly guy that hands out IP addresses to devices on your network automatically. You don’t have to assign them one-by-one; DHCP takes care of that for you!
To start with configuring a DHCP server in Cisco Packet Tracer, here’s how you can do it:
Step 1: Set Up Your Network
You want to create a simple network first. Grab a few end devices like PCs and a router. Connect them using cables so they can communicate.
Step 2: Add a DHCP Server
In Packet Tracer, look for the “End Devices” section and drag that DHCP server onto your workspace. It’s usually labeled as “Server.”
Step 3: Configure the Server
Click on your newly added server and go to the configuration tab. Find «DHCP» on the left side. Here’s where you set up how many IP addresses you’ll be giving out:
Step 4: Define Default Gateway and DNS
Still in this section, you’ll want to add information for default gateway and DNS servers if needed.
Okay, we’ve got all that set up!
Step 5: Connect Devices
Now, connect your end devices (like PCs) to your network switch or directly to your router if that’s how you’ve set things up.
Step 6: Configure PCs to Use DHCP
This part is super simple! Click on each PC, go into its configuration settings and change the settings from static IP addressing (if it was set before). You want to select “Obtain an IP Address Automatically.” That lets them find their new buddies—the DHCP server.
And voilà! When those PCs boot up or connect to the network, they will reach out through DHCP and request an IP address from your server.
Troubleshooting Tips:
If things aren’t working right:
Playing around with this setup in Packet Tracer not only helps you learn but also gives you confidence when working with actual networks later down the line! Just remember—practice makes perfect!
So grab Cisco Packet Tracer and start simulating; it’s really fun once you get hang of it!
Step-by-Step Guide to Configuring DHCP Router in Cisco Packet Tracer
Sure! Let’s talk about how to configure a DHCP router in Cisco Packet Tracer. You might’ve heard of DHCP before, which stands for Dynamic Host Configuration Protocol. It’s a neat way for your devices to get an IP address automatically, instead of you having to set it up manually every time. In Packet Tracer, it’s pretty straightforward once you get the hang of it.
First off, you need to launch Packet Tracer and create a new project or open an existing one where you want to test your DHCP setup. You’ll want a router and at least one end device like a PC or laptop—basically, something that can connect to the network.
Next up, add a router to your workspace. Just drag and drop it from the available devices. Click on the router and go into its configuration mode by clicking on the CLI tab (Command Line Interface). This is where all the magic happens!
Now, when you’re in CLI mode, you can start typing commands. First, enter enable mode by simply typing “enable” and hitting Enter.
Then, type in “configure terminal” or just “conf t” for short to access global configuration mode. You with me so far?
Now let’s configure the DHCP settings:
– First step is specifying the DHCP pool name: type ip dhcp pool MyPool. Whatever name you give here is just a label for yourself.
– Next up is defining the network that will be served by this DHCP pool with network 192.168.1.0 255.255.255.0. Here, adjust those numbers according to your network design.
Then comes the DNS server configuration with dns-server 8.8.8.8. This tells your devices where to look for names they don’t recognize—that’s Google’s public DNS server if you’re curious!
You should also specify the default gateway with default-router 192.168.1.1, which often is just your router’s IP address.
Finally, if desired (and honestly most times it is), assign an IP address range for your clients with address 192.168.1.10 192.168.1.100. This means any device that connects will get an IP from .10 to .100 automatically.
After typing all those commands out—don’t forget that each command ends with Enter—you can exit config mode by typing “exit” until you’re back at the router prompt.
The last part? Connecting and testing! Just drag a PC into your workspace connected via Ethernet cable to one of the router’s interfaces (like FastEthernet0/0). Click on that PC and go into its «Desktop» tab > then go on «IP Configuration.» Here’s where you’ll see an option for «DHCP.» When you click that, if everything’s done right, you’ll see it grab an IP address automatically from our specified range! That’s like magic!
If nothing happens or it fails to get an address—check connections! And double-check those commands in CLI; sometimes we make little typos without realizing it!
This whole process gives you a basic setup of configuring DHCP on Cisco routers within Packet Tracer—a handy tool when learning networking basics but super practical too! Keep experimenting; that’s how you’ll really get comfortable with it all!
So, you know how DHCP—Dynamic Host Configuration Protocol—works, right? It’s basically your network’s way of automatically assigning IP addresses to devices. Like when you connect your phone or laptop to Wi-Fi and it just gets an address without you having to do anything. Super handy!
Now, if you’ve ever gone into Cisco’s Packet Tracer, you probably know it’s a tool for simulating networking setups. It’s pretty cool because you can test out different configurations without messing with real hardware. So, simulating DHCP configurations there really gives you a chance to see how everything interacts.
I remember the first time I used Packet Tracer for this purpose. I was in this tech class, sweating bullets because I had no idea what I was doing—seriously! We had to set up a network with multiple VLANs and make sure each one was properly getting its DHCP leases. At first, it felt like trying to solve a Rubik’s cube blindfolded. But once I got the basic setup going, it clicked. The way the clients would request an IP and how the DHCP server would respond? It was like watching magic unfold!
By using Packet Tracer, not only did I get to see those lease requests in action but also learned the troubleshooting parts too: like what happens when conflicts arise or if the server goes down. You know that spooky moment when your computer just can’t find an IP? Well, simulating that in Packet Tracer made me realize how critical accurate configurations are.
And let me tell ya, bringing that experience into real-world situations made a difference! When I started setting up actual networks later on, all those simulations paid off big time. It felt familiar; like I was walking into my favorite coffee shop instead of some weird alien planet.
In short, simulating DHCP configurations with tools like Packet Tracer is golden! You learn by doing—with zero risk of blowing something up in your office or home setup. It teaches you not just how everything should look on paper but also prepares you for any hiccups that might happen in reality. Pretty neat!
