So, you’re looking to set up a Cisco ASA VPN for remote access, huh? That’s cool! Seriously, it can feel a bit overwhelming at first, but it’s not as scary as it sounds.
Picture this: you’re at a coffee shop, sipping on your latte while trying to access files from work. You want that sweet, secure connection to keep your info safe. That’s where the Cisco ASA comes into play.
You probably have a ton of questions swirling around in your head. Like, how do I even start? What do I need? Don’t worry; we’re gonna break it all down together.
By the end of this little chat about VPN config, you’ll be feeling like a pro! So grab a snack and let’s dig in!
Step-by-Step Guide to Configuring Cisco ASA Remote Access VPN
Setting up a Cisco ASA Remote Access VPN can seem a bit daunting at first, but once you break it down, it’s pretty manageable. You’ll be surprised at how many steps there actually are, so let’s get right into it!
1. Accessing the ASA Device
First off, you need to get access to your Cisco ASA device. You usually do this through a console cable or SSH if it’s already configured for remote access. Once logged in, you’ll see the command prompt waiting for your input.
2. Basic Configuration
Before diving into VPN settings, make sure your ASA has basic configurations done like hostname and interface settings. This means setting up things like:
- Your device’s hostname
- interface IP addresses on inside and outside interfaces
- default routes
It’s kind of like getting your house in order before hosting a party.
3. Enable IKEv1 or IKEv2
Next step? You gotta enable Internet Key Exchange (IKE). This protocol is critical for establishing secure tunnel connections.
You can choose between IKEv1 and IKEv2: IKEv2 is generally preferred because it’s more efficient and secure, but either one will work if set up properly.
4. Create an AnyConnect Client Profile
To allow users to connect remotely using the Cisco AnyConnect VPN client, you’ll want to create a client profile. This is where you specify details like:
- The VPN address pool, which assigns IP addresses to users connecting via VPN.
- User authentication methods, such as usernames/passwords or certificates.
- The group policies, which control user access levels.
Think of this as crafting an invitation with VIP access—only those who fit the criteria can join.
5. Define User Groups and Assign Policies
You’ll also need to set up user groups which define permissions for various types of users.
So maybe you have one group for employees and another for contractors—just make sure each has the right policies assigned based on their roles!
6. Configure Tunnel Group Settings
Creating tunnel groups is essential as they serve as virtual containers for your VPN configuration settings. Within these groups, you’ll specify:
- The authentication server type
- The connection profile details
This step makes sure that everyone has the appropriate path to connect.
7. Configure NAT Control Policies (If Needed)
If you’re working with various networks behind your ASA device, you might need to set up Network Address Translation (NAT) rules effectively so everything routes correctly when someone connects through the VPN.
It’s not exactly glamorous work but necessary!
8. Testing Your Configuration!
Now comes perhaps the most thrilling part—testing! You’ll want to ensure that everything works smoothly by connecting via an AnyConnect client from an external network (not just from within your local network).
So grab a buddy or use another device to check if they can authenticate and gain access without issues.
Once you’ve followed all these steps closely, you’ll have configured a functioning remote access VPN on your Cisco ASA!
And hey, remember that it’s totally normal if something doesn’t work right away—troubleshooting is part of the game! In fact, I’ve had moments where I thought I’d messed everything up only to find out it was just a tiny config oversight… kinda like looking everywhere for your glasses only to realize they’re on your head!
Keep this guide handy as you go through each step! It’s like having a roadmap when you’re exploring new territory—you won’t get lost!
Step-by-Step CLI Guide for Cisco ASA Remote Access VPN Configuration
So, configuring a Cisco ASA remote access VPN can seem like a task that belongs in the realm of tech wizards. But, you know, once you break it down step-by-step, it’s totally manageable. Let’s walk through the essential steps you’ll need to get a Cisco ASA VPN up and running.
1. Access Your ASA Device
First things first, you need to log into your Cisco ASA device. This usually involves using SSH or console access. You’ll want to have that command line interface (CLI) ready to go.
2. Set Up the Basic Configuration
You’ll start by configuring some basic settings if you haven’t done this already, which helps in identifying your device on the network.
«`cli
hostname ASA
interface outside
ip address [your_external_ip] [subnet_mask]
no shutdown
«`
You follow me? You replace `[your_external_ip]` and `[subnet_mask]` with your actual values.
3. Configure the Inside Interface
Next up is defining your inside network interface:
«`cli
interface inside
ip address [your_internal_ip] [subnet_mask]
no shutdown
«`
4. Create a VPN Pool
Now, let’s create an address pool for your VPN clients. This will provide IP addresses to clients when they connect.
«`cli
ip local pool VPN_Pool 192.168.1.10-192.168.1.50 mask 255.255.255.0
«`
This means when your clients connect via the VPN, they will be assigned an IP from this range.
5. Set Up Group Policy
After that, you need to create a group policy for the users:
«`cli
group-policy VPN_Group internal
group-policy VPN_Group attributes
dns-server value [your_dns_server]
vpn-tunnel-protocol ikev1 ikev2 l2tp-ipsec
«`
Make sure you replace `[your_dns_server]` with the DNS server’s IP address that you’d like your clients to use.
6. Define a Tunnel Group
Next step is establishing a tunnel group:
«`cli
tunnel-group VPN_Tunnel type remote-access
tunnel-group VPN_Tunnel general-attributes
address-pool value VPN_Pool
authentication-server-group DefaultRAGroup
default-group-policy VPN_Group
«`
This gives users access to your defined settings when they connect through the tunnel.
7. Configure Authentication
Now it’s time for user authentication settings:
«`cli
aaa-server Auth_Server protocol radius
aaa-server Auth_Server (inside) host [radius_server_ip]
key [your_secret_key]
«`
You’d want to put in the actual RADIUS server’s IP and replace `[your_secret_key]`.
8. Enable IKEv1/IKEv2
Depending on what version you’re using, configure IKE:
For IKEv1:
«`cli
crypto ikev1 policy 10
encryption aes-256
hash sha
authentication pre-share
group 2
lifetime 86400
«`
For IKEv2:
«`cli
crypto ikev2 policy 10
encryption aes-256
integrity sha256
group 14
lifetime seconds 86400
«`
Setting these parameters properly ensures secure connections.
9: Create an Access List for Traffic Permittion
You’ll want to define traffic rules so users can reach internal resources after connecting:
«`cli
access-list outside_access_in extended permit ip any any
access-group outside_access_in in interface outside
«`
This permits all traffic from anywhere but make sure it’s tailored for security based on what you’re allowing!
10: Test Your Configuration
Finally—test! Have someone connect using client software like Cisco AnyConnect or another compatible option and ensure everything works smoothly.
When I set up my first remote access feature on my own router many moons ago, let me tell ya—I was sweating bullets! It felt like I was playing tech roulette until finally everything clicked into place after troubleshooting some funky config issues…and then boom! Client connected without hiccups! So yeah, it can be nerve-wracking at first but keep plugging away at it!
There you have it; this should put you on solid ground with setting up Cisco ASA remote access VPN configuration efficiently and effectively without getting too messy! Happy configuring!
Comprehensive Cisco ASA VPN Configuration Guide for Secure Remote Access
So, you wanna understand how to set up a Cisco ASA VPN for secure remote access? That’s great! A VPN can really help in keeping your data safe, especially when you’re working from home or using public Wi-Fi. It creates a secure tunnel between your device and the network, basically making sure no one can peek into your info while it travels around the internet.
To kick things off, let’s get familiar with some key concepts related to this setup.
1. What is Cisco ASA?
Cisco ASA (Adaptive Security Appliance) acts as a firewall and VPN concentrator. You can use it to control network traffic and ensure secure remote access for users.
2. Setting Up Your ASA
First things first, you need to log in to your Cisco ASA device via its interface. This usually happens through a web browser or sometimes command-line interface (CLI), depending on what you’re comfortable with.
3. Define the VPN Settings
In order to make things work smoothly, you’ll need to configure specific settings:

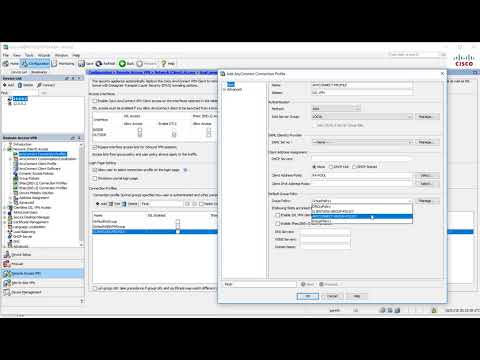

You’ll usually go into «Configuration» > «Remote Access VPN” > “Tunnel Groups» in the interface.
Here’s where it gets interesting—configuring those group policies as well! You’ll define things like IP address assignment and split tunneling options (which determines if all traffic goes through the VPN or just some).
4. SSL vs IPSec
Now, there are two main protocols you might want to choose: SSL and IPSec.
– SSL: Usually easier for users because it works right from a web browser.
– IPSec: More robust but requires client software installation on user devices.
Depending on what your organization needs, pick one!
5. Certificates and Authentication
You’ll want strong security here too! Configure authentication methods: passwords, digital certificates, or even multi-factor authentication if you’re feeling fancy! Basically, this helps ensure that only authorized folks get access.
And while we’re at this point, make sure you have valid security certificates installed if you’re going with SSL.
6. Connection Profiles
Connection profiles are like blueprints of how connections happen for different groups of users. Think of it as setting up different routes for different types of vehicles in your city—some may go through highways while others take local roads.
Here’s where specifying client settings comes into play—you might want certain users to have access to different resources than others based on their connection profile!
The Final Touch: Testing Your Setup
You definitely don’t want any surprises after deploying everything! Always test your setup thoroughly:
And remember: constantly monitor connection statistics along with user activity once everything’s running smooth—keeping tabs helps catch issues early!
In wrapping up all this techno-babble—implementing a Cisco ASA VPN isn’t just about making tech work; it’s about giving peace of mind knowing that your data is securely wrapped up tight during its travels across cyberspace.
So, let’s chat a bit about Cisco ASA VPN configuration, especially when it comes to remote access. I mean, these days, remote work is pretty much the norm, right? A while back, a buddy of mine was stressed out about setting up VPN on his office’s Cisco ASA firewall. He was juggling work and family life, and honestly, the last thing he needed was tech headaches.
Basically, the Cisco ASA (Adaptive Security Appliance) is this powerful piece of hardware that helps secure networks by allowing or blocking traffic based on specific rules. When you set it up for remote access VPNs, it’s like you’re opening a secure tunnel to your network from anywhere in the world. But figuring out how to do that can feel overwhelming at first.
So here’s the deal: configuring an ASA for VPN isn’t just about flipping switches and calling it good. You gotta think about user authentication—things like usernames and passwords or maybe even certificates if you want to take it up a notch in security. It’s important because you want to make sure only authorized users are accessing your sensitive info.
But there’s more! You also need to decide what kind of VPN you want to set up—like using SSL for web-based access or IPsec for more traditional setups. Each has its perks and drawbacks, which can influence your choice depending on what your network needs.
Once everything’s in place—like setting up group policies and ensuring proper routing—it can feel like you’ve climbed Everest when users finally connect and start working smoothly from home. It’s such a relief! You really see the value of all that effort when people can access their files securely without any fuss.
Honestly, while I’m not saying it’s all sunshine and rainbows (you’ll probably hit snags along the way), getting familiar with Cisco ASA VPN configurations opens doors for flexibility in how teams operate today. It’s exciting knowing that with the right setup, remote work is safe and efficient!
