So, you just scored a shiny new PCI SSD? Nice! But now you’re scratching your head, wondering if it’ll actually play nice with your motherboard.
That’s a totally valid concern. Seriously, no one wants to buy cool tech only to find it doesn’t fit. Yikes!
Let me break it down for you. We’ll figure out what compatibility means and how to check if those two can get along. Sound good? Cool! Let’s get into it!
Understanding PCIe Compatibility: How to Determine Your Motherboard’s Supported Versions
Alright, so PCIe compatibility can sound a bit complicated at first, but once you break it down, it’s not too bad. Basically, PCIe (Peripheral Component Interconnect Express) is a standard that tells your computer how to connect various hardware like graphics cards and SSDs to the motherboard. Knowing what version of PCIe your motherboard supports is crucial if you’re looking to upgrade or install new components.
First off, let’s talk about the versions of PCIe. They range from PCIe 1.0, which was around ages ago, all the way up to PCIe 5.0, which is super fast and still relatively new. Each version typically doubles the bandwidth of its predecessor — like PCIe 2.0 gives you about 5 GT/s (gigatransfers per second) while PCIe 3.0 bumps that up to around 8 GT/s.
Now, you might be wondering: how do you find out what version your motherboard supports? Well, there are a few ways:
- Check the Motherboard Manual: When you buy a motherboard, it usually comes with a manual that lists all the specs. Look for anything mentioning PCI Express slots or versions.
- Manufacturer’s Website: If you’ve lost the manual (we’ve all been there), just go online and search for your motherboard model on the manufacturer’s site. They usually have detailed specs listed there.
- Software Tools: You can use software like CPU-Z or Speccy to check out what hardware you’ve got and what versions are supported.
The tricky part comes when you want to upgrade components like an SSD or graphics card. Here’s where compatibility really matters because newer devices might have higher bandwidth capabilities than your older motherboard can support.
If you’re thinking about upgrading to a faster SSD but your motherboard only supports PCIe 3.0 while your new SSD uses PCIe 4.0, it’s not going to work at full speed – it’ll fall back to whatever version is lowest in play! So in this case, you’d get some speed improvement but not all of it.
Another point worth mentioning is that some motherboards have multiple slots with different versions — let’s say one slot is PCIe 2.0 while another is PCIe 3.0; if you’re installing a new GPU in the older slot, then obviously it’s gonna perform slower since it’s locked into that older tech!
The bottom line here? Make sure you know exactly what versions of PCIe your motherboard supports before making any purchases related to upgrades or new hardware installations, alright? It’ll save you time and maybe even some frustration down the line! And remember: always double-check if you’re unsure; it’s better than finding out at the last minute that something doesn’t fit right.
Step-by-Step Guide to Checking SSD Compatibility with Your PC
So, you’re looking to check if that shiny new SSD will fit into your PC? Cool! Let’s break it down together. There are a few key factors to keep in mind when checking SSD compatibility with your motherboard.

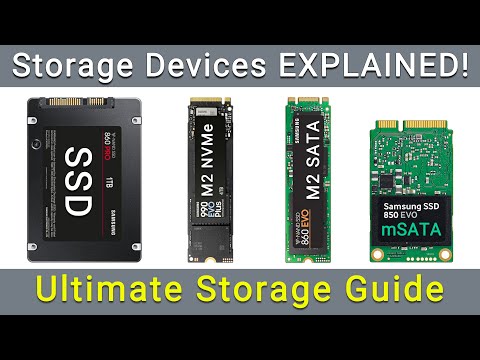

First off, what you need to know is that **not all SSDs are made the same**. There are different types and they connect differently too. Generally, you’ll come across two main types: **SATA** and **PCIe (NVMe)**. Here’s the thing: you need to know which interface your motherboard supports.
1. Check Your Motherboard Specifications
The first step is usually to look at your motherboard’s manual or its manufacturer’s website. This will tell you what SSD interfaces are supported:
Getting it right can save you a lot of hassle later on! I remember trying to upgrade my old PC’s storage and I ended up buying an NVMe, thinking it would work only to realize my motherboard didn’t support it—seriously frustrating!
2. Knowing the Form Factor
Next up is understanding the form factor of the SSD:
Make sure your case has room for whichever one you pick; you’d hate for it not to fit!
3. Check for Key Types
For M.2 drives, check if they are “Keyed” correctly:
This part can be a little tricky because mixing them up won’t work.
4. Compatibility of PCIe Lanes
Now let’s chat about PCIe lanes—this can get technical but hang tight:
Your CPU needs to support enough lanes for that fast data transfer you’re hoping for with NVMe drives:
If you’ve got older hardware, double-check this before proceeding.
5. BIOS/UEFI Support
Lastly, consider BIOS/UEFI support:
Sometimes older motherboards may need a firmware update before they’ll recognize newer tech like PCIe 4.0 speeds.
Checking your BIOS settings might also show options regarding NVMe support or other related features.
So there you have it! Just remember these steps when checking if that SSD will play nice with your PC setup:
– Examine motherboard specs.
– Understand form factor.
– Look out for key types.
– Confirm available PCIe lanes
– Check BIOS/UEFI compatibility.
This way you’ll avoid those awkward surprises when trying to upgrade! Now go ahead and unleash some serious storage power on that machine of yours!
M.2 SSD Compatibility Checker: Ensure Perfect Match for Your System
When you’re thinking about upgrading your computer with an M.2 SSD, knowing if it’s compatible with your motherboard is super important. You don’t want to end up with a shiny new drive that just doesn’t fit, right? So, let’s break down how to check compatibility and make sure you get the perfect match for your system.
First off, **M.2** is a form factor for SSDs, meaning they’re small and can be super fast compared to traditional SATA drives. But here’s the kicker: not all motherboards support M.2 drives, and even the ones that do might only support certain types of M.2 SSDs.
Now, there are basically two key things you need to examine:
- Physical Size: M.2 drives come in different sizes like 2242 or 2280. The first two digits indicate the width (22mm), and the last two indicate the length (42mm or 80mm). You gotta make sure the size of your drive fits what your motherboard can handle.
- Connection Type: This part can get a bit tricky. M.2 SSDs use different interfaces like SATA or PCIe (which is usually faster). PCIe drives use NVMe protocol that’s way quicker than standard SATA connections.
Before you buy an M.2 SSD, check your motherboard’s manual or manufacturer’s website for these details. They’ll usually have a section that outlines which types of drives are supported.
And hey, if you still have an old motherboard lying around—say from a gaming rig years back—look closely at its specs too! Sometimes you might find out it supports only one type of connection; maybe even just older SATA-based ones.
Here’s something crazy: I remember when I was upgrading my laptop with an M.2 drive without doing my homework first—I thought all drives were created equal! Spoiler alert: they’re not! The drive wouldn’t install properly because it was looking for features that my laptop just didn’t offer. It was frustrating but also taught me to dig deeper next time I’m making upgrades.
So once you’ve got the right physical size and connection type nailed down, check if there are any BIOS updates available for your motherboard too—it can sometimes enhance compatibility with newer hardware.
In summary, ensuring compatibility between your M.2 SSD and motherboard isn’t just about grabbing any old drive off the shelf; it requires some careful checking of specifications—size and interface specifically—and possibly updating BIOS if needed! Keep those tips in mind and you’ll be cruising through games or files in no time!
When you’re building or upgrading your PC, one of those moments that can get a bit tricky is figuring out if your PCI SSD will actually work with your motherboard. It’s like getting a new puzzle piece and realizing it doesn’t fit anywhere. Super frustrating, you know?
So here’s the deal: PCI SSDs are these lightning-fast storage options that connect through the PCIe (Peripheral Component Interconnect Express) interface. This tech allows for way quicker data transfer compared to traditional SATA drives. If you’ve ever experienced sluggish load times or game lags, then you might really feel the difference when switching to an SSD.
Now, just because you have a PCI SSD doesn’t mean it’ll automatically work with every motherboard out there. You gotta check a few things first. The key factors include the motherboard’s PCIe version and whether it has an M.2 slot (which is where these little beauties usually plug in). Some older motherboards might not support NVMe drives—the ones that really shine in speed.
Here’s a little story for you: I once had this shiny new NVMe SSD all ready to roll. I was super pumped! But then, as I started installing it, I realized my old motherboard didn’t support it. Talk about feeling deflated! Like bringing home your favorite pizza only to find out you’re out of plates—such a letdown!
Another thing to consider is the length of the SSD itself because not all M.2 slots are created equal; some can accept longer drives while others can’t. And that can be another roadblock.
The bottom line is, before making any purchases or starting on your build, hit up the specs for both your motherboard and the SSD you’re eyeing. It just takes a bit of digging around online—and maybe a cup of coffee—to make sure everything matches up nicely.
In short, understanding how these components play together isn’t just tech jargon; it’s about making sure your system runs like a dream instead of becoming one frustrating puzzle piece after another! So grab that manual or browse some forums—it’s worth the time for peace of mind down the line!
